Pioneer600 Raspberry Pi Expansion Board includes miscellaneous components, all on a single piece of hardware. It supports Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi 2 Model B, and Raspberry Pi 3 Model B. Pioneer600 offers a standard I/O interface over various components and offers more GPIO possibility with the PCF8591.

With Pioneer you can control your Raspberry Pi through a serial terminal exploiting the onboard CP2102 and interface 0.96-inch OLED display just like a walk in the park. Some of the other peripheral features are high precision RTC DS3231, AD/DA PCF8591 with 8-bit resolution, LFN0038K IR receiver, and BMP180 Pressure/temperature sensor.

• Raspberry Pi GPIO interface: for connecting Raspberry Pi
• USB TO UART: control the Pi through a serial terminal
• AD/DA IO interface: screw terminal
• 1-WIRE interface: for connecting 1-WIRE devices like DS18B20
• Sensor interface: for connecting various sensors
• 0.96inch OLED: SSD1306 driver, 128×64 resolution, SPI interface
• Buzzer
• CP2102: USB TO UART converter
• PCF8591 : 8-bit AD/DA converter, I2C interface
• BMP180: pressure sensor, I2C interface
• PCF8574: I/O expansion chip, I2C interface
• DS3231: high precision RTC chip, I2C interface
• Power indicator
• User LED
• Joystick
• LFN0038K IR receiver

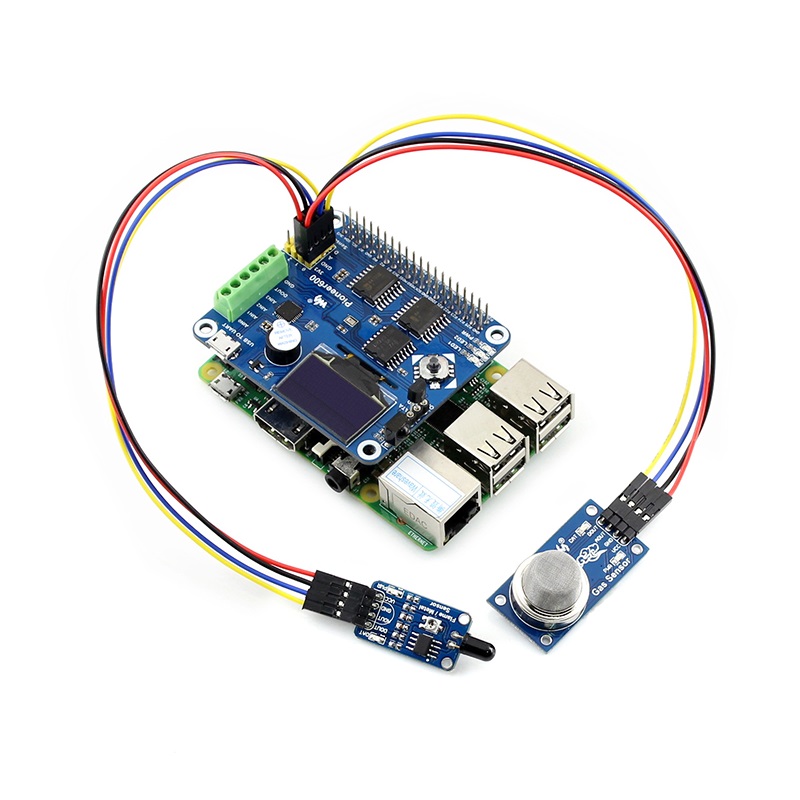

Note: the Raspberry Pi and sensors shown in the Images are NOT included.

Features:

• Supports Raspberry Pi A+ / B+ / 2B / 3B
• Dual LED, joystick, buzzer, the basic components
• CP2102 to control the Pi through a serial terminal
• 0.96inch OLED, a big world in the little screen

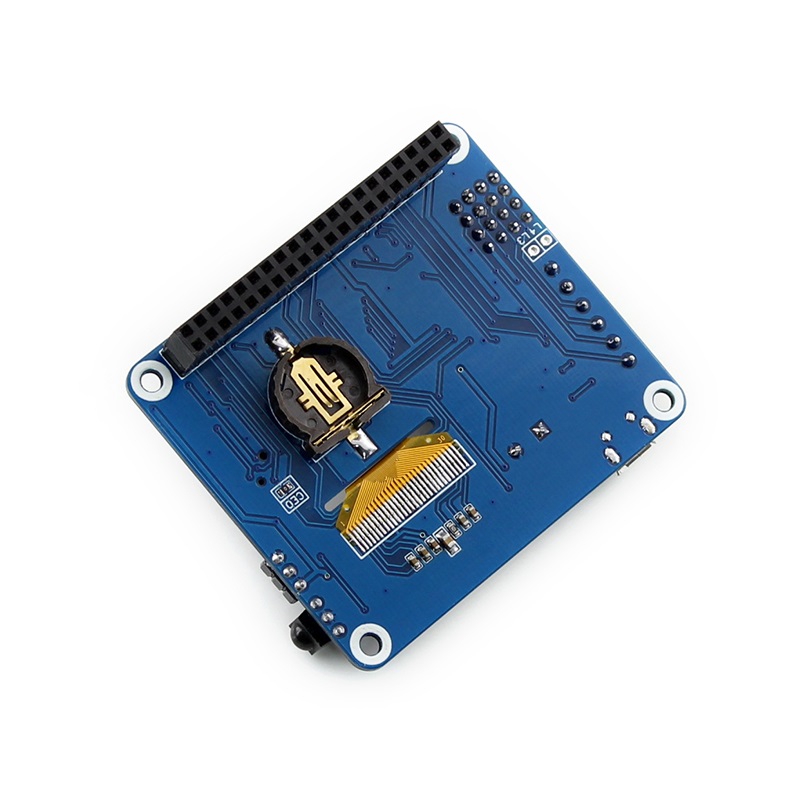

• DS3231, high precision RTC, backup battery holder is also available
• PCF8591 AD/DA, 8-bit resolution, screw terminal IO interface
• More GPIO possibility with PCF8574
• LFN0038K IR receiver, remote control your Raspberry Pi
• BMP180 to measuring air pressure and temperature
• One wire interface for connecting 1-WIRE devices, DS18B20 is included
• Sensor Interface for connecting various sensors

Package Includes:

• 1 x Pioneer600 Board
• 1 x DS18B20
• 1 x USB Type-A Plug to Micro B Plug Cable
• 1 x RPi Screws Set
