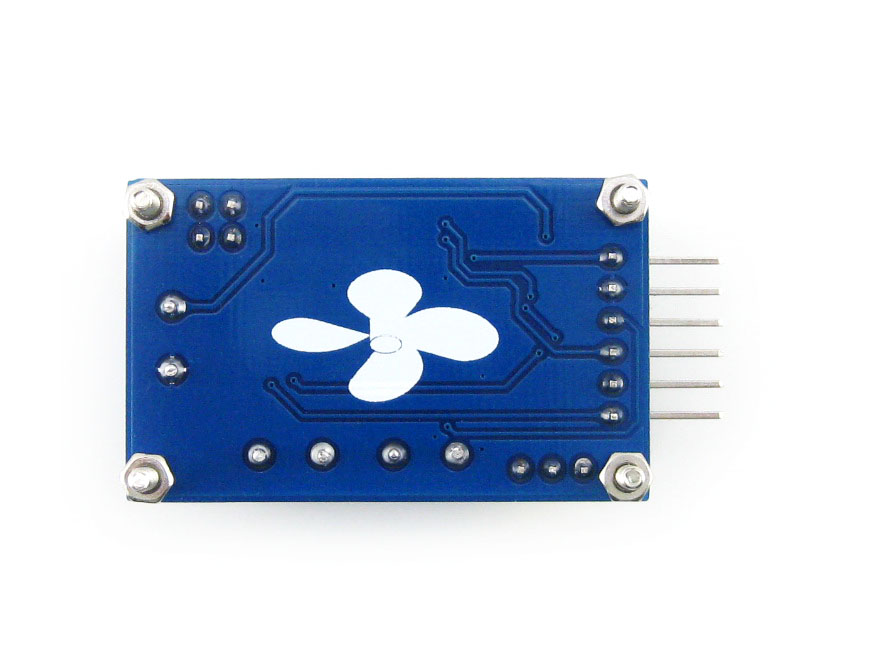

This is a Waveshare Motor Control Board. The Control Board consists of onboard dual H-bridge driver L293D. It’s easy to use Arduino or another development platform to drive the motor by this diver board. The motor driver drives 2 DC motors or 1 stepping motor at one time.

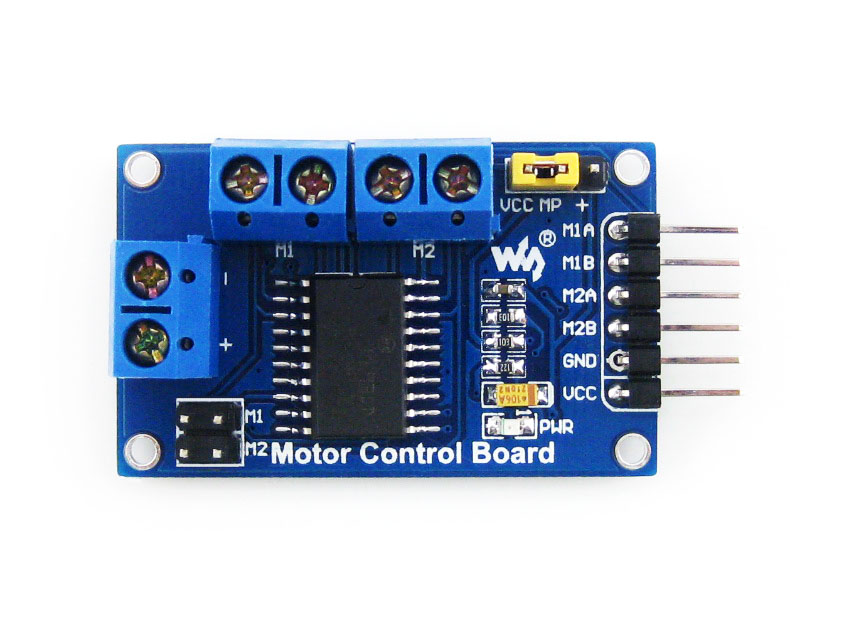

How to Use:

1. M1A/M1B: connects to MCU digital IO, motor1 rotation controlling
2. M2A/M2B: connects to MCU digital IO, motor2 rotation controlling
3. GND: ground
4. VCC: 5V power supply

Features:

1. Onboard dual H-bridge driver L293D
2. Drives 2 DC motors or 1 stepping motor at one time
3. 600mA output current (peak 1.2A) per single bridge
4. ESD protection

Package includes:

1. 1 x Waveshare Motor Control Board
