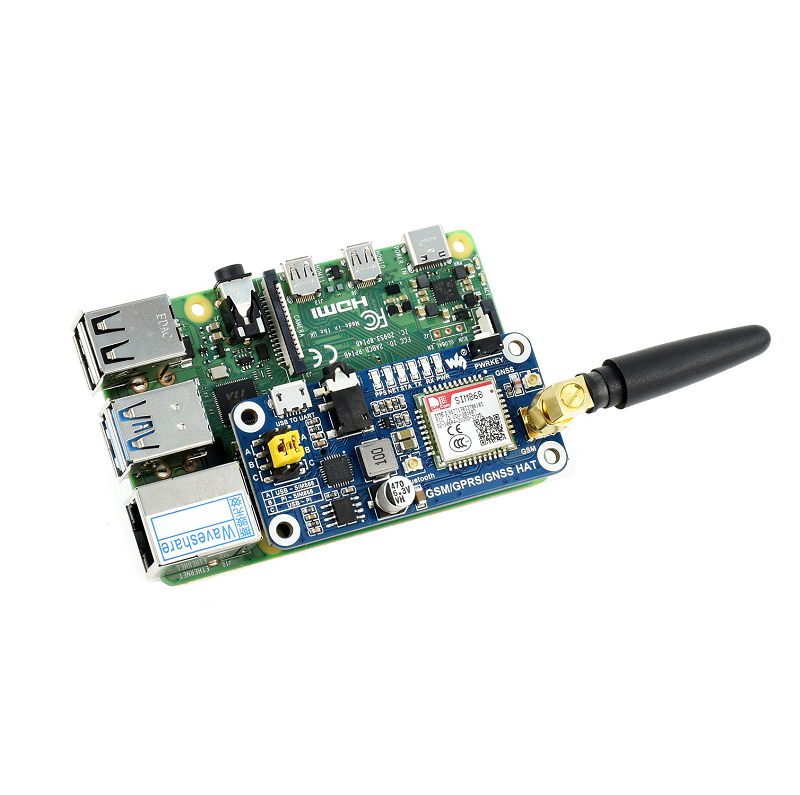

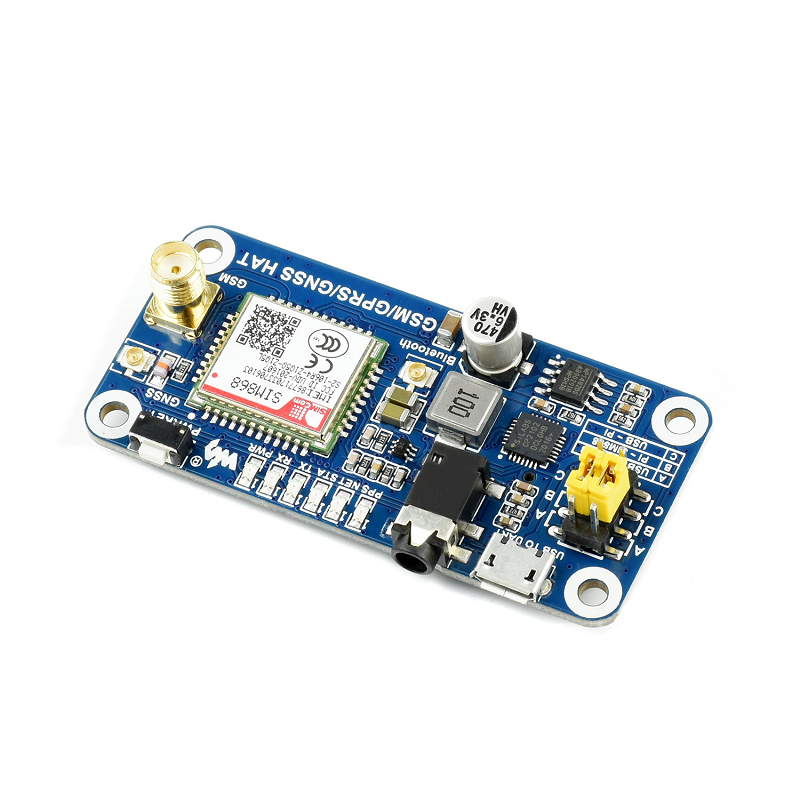

This is a Waveshare GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi.

This is a handy, low power Raspberry Pi HAT that features multi communication functionalities: GSM, GPRS, GNSS, and Bluetooth. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on.

Note: Raspberry Pi Shown in Image Is Not Included With Product You Have to Purchase it Separately.

Features:

General:

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
• Support GPS, COMPASS, Glonass, LBS base station positioning, Omni-positioning
• Bluetooth 3.0, supports data transferring through Bluetooth
• Onboard USB TO UART Converter CP2102 for UART debugging
• 6x LEDs for indicating the module working status
• SIM card slot for 1.8V/3V SIM card
• RTC with backup battery holder
• Baudrate auto-detection (1200bps ~115200bps)
• Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
• Supports SIM application toolkit: GSM 11.14 Release 99

GSM/GPRS:

• Band
  • GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
  • Quad-band auto search
  • Compliant to GSM phase 2/2+
• Emitting power
  • Class 4 (2W @ GSM 850/EGSM 900 MHz)
  • Class 1 (1W @ DCS 1800/PCS 1900 MHz)
• GPRS connectivity
  • GPRS multi-slot class 12 (default)
  • GPRS multi-slot class 1~12 (configurable)
• GPRS data feature
  • Downlink speed: max 85.6kbps
  • Uplink speed: max 85.6kbps
  • Coding schemes: CS-1CS-2CS-3CS-4
  • Supports PAP (Password Authentication Protocol) for PPP connection
  • Supports PBCCH
  • Supports USSD

1. SMS
   • Supports: MT/MO/CB/Text/PDU mode
   • SMS storage: SIM card
2. Audio
   • Voice encode/decode mode: Half RateFull RateEnhanced Full RateAdaptive muti rate
   • Supports echo cancellation
   • Supports noise reduction

GNSS:

• Receiver type
  • 33 tracking channels
  • 99 acquisition channels
  • GPS L1 C/A code
• Sensitivity
  • Tracking: -165 dBm
  • Cold starts : -148 dBm
• Time-To-First-Fix
  • Cold starts: 28s (Typ.)
  • Hot starts : < 1s
  • Warm starts: 26s
• Accuracy
  • Horizontal position : <2.5m CEP

Bluetooth:

• Integrates AT commands
• Compliant to Bluetooth specification3.0 + EDR
• Supports SPP, OPP, HFP/HSP, etc.

Package Includes:

• 1 x GSM/GPRS/GNSS HAT
• 1 x GSM Antenna
• 1 x GPS External Antenna (B)
• 1 x Bluetooth Antenna
• 1 x USB type A plug to micro plug cable
• 1 x RPi screws pack (2pcs)
