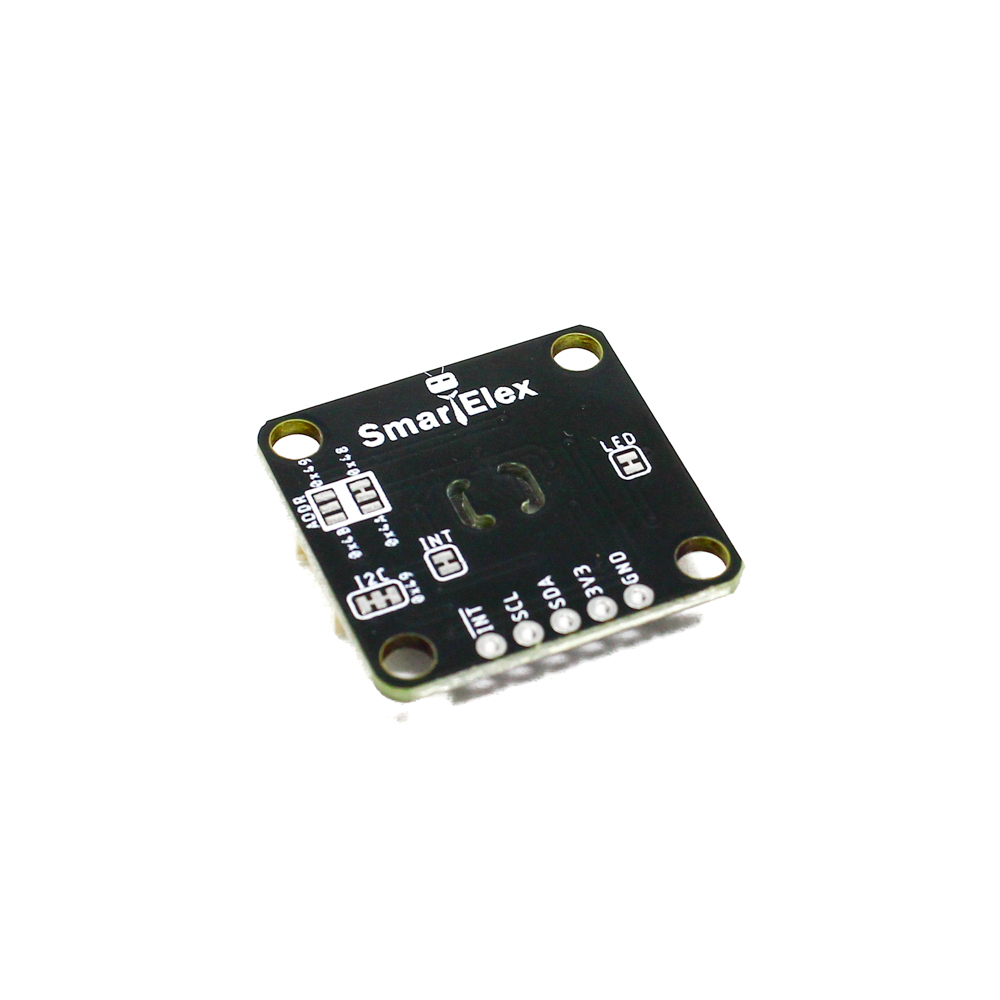

The SmartElex TMP117 breakout is a high-precision temperature sensor equipped with an I2C interface. It outputs temperature readings with high precision of 0.1ºC across the temperature range of -20ºC to +50ºCs with no calibration and a maximum range from -55ºC to 150ºC. The SmartElex High Precision Temperature Sensor also has a very low power consumption rate which minimizes the impact of self-heating on measurement accuracy. No soldering is required to connect it to the rest of your system. However, we still have broken out 0.1″-spaced pins in case you prefer to use a breadboard.

The SmartElex High Precision Temperature Sensor also includes programmable temperature limits and digital offset for system correction. While the TMP102 is capable of reading temperatures to a resolution of 0.0625ºC and is accurate up to 0.5ºC, the on-board TMP117 is not only more precise but has a 16-bit resolution of 0.0078ºC

Features:

• TMP117 – High precision(0.1ºC) temperature sensor
• Uses I2C interface
• Operating temperature range -55ºC to +150ºC
• Uses I2C interface
• Four selectable addresses
  • 0x48 (default), 0x49, 0x4A, 0x4B
• 16-bit resolution, 0.0078ºC
• Low power consumption
  • 3.5ºA (1-Hz conversion cycle)
  • 150nA (shutdown current)
• Programmable operating modes
  • Continuous, one-shot, and shutdown
• Programmable temperature alert limits
• Selectable averaging for reduced noise
• Digital offset for system correction
• High accuracy, digital temperature sensor
  • 0.1ºC (max) from 20ºC to 50ºC
  • 0.15ºC (max) from 40ºC to 70ºC
  • 0.2ºC (max) from 40ºC to 100ºC
  • 0.25ºC (max) from 55ºC to 125ºC
  • 0.3ºC (max) from 55ºC to 150ºC

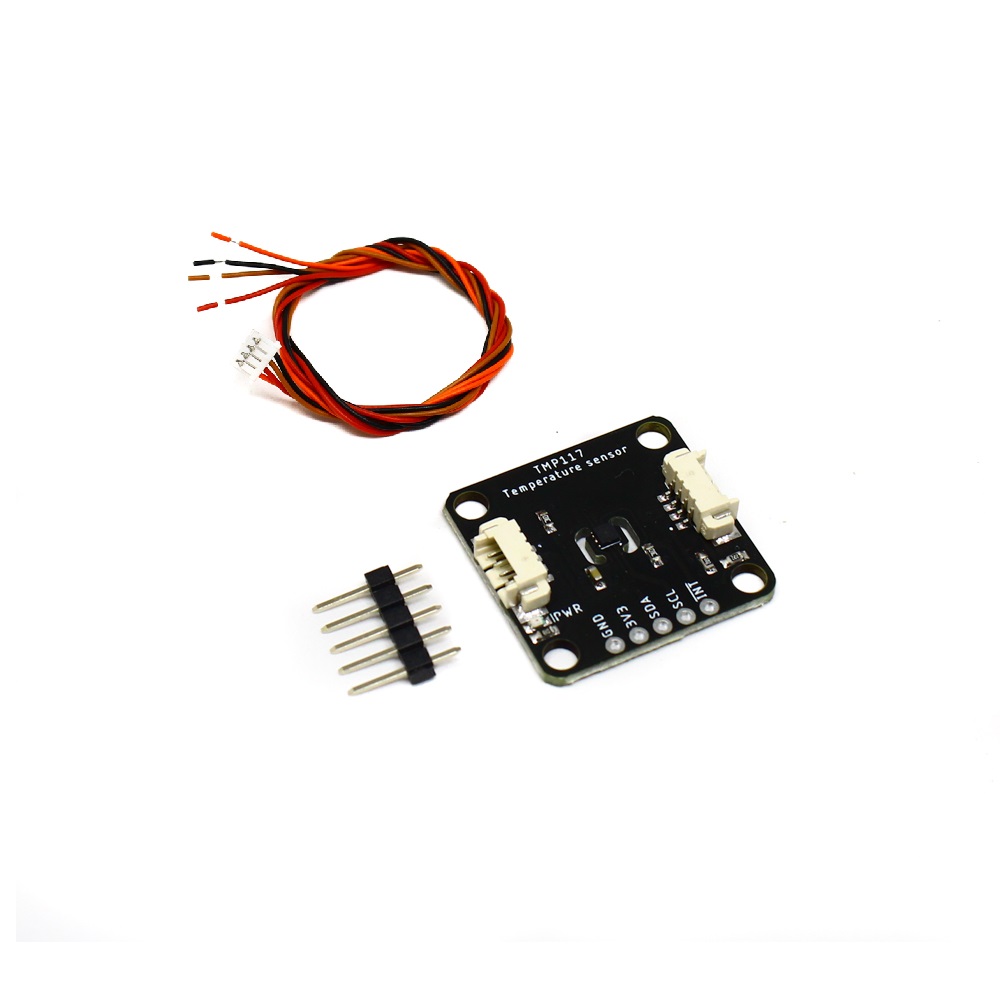

Package Includes:

• 1 x SmartElex High Precision Temperature Sensor – TMP117
