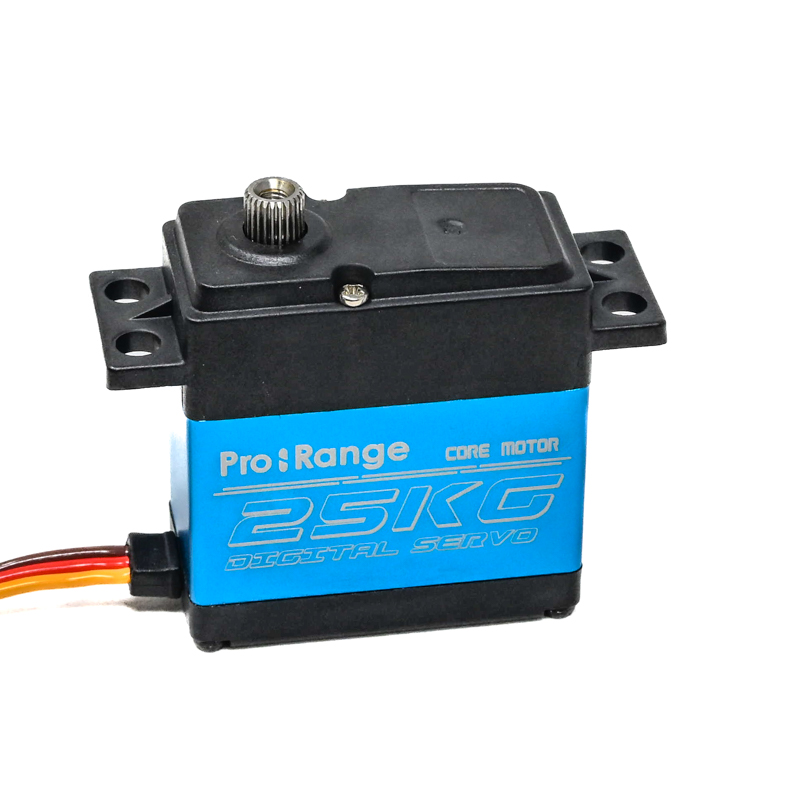

Pro-Range OT5325M 7.4V 25kg.cm 180° Metal Gear Digital Servo Motor

  1. Input Voltage Range (VDC):  4V-8.4V
  2. Rated Torque: 25Kg.cm @ 7.4V
  3. Gears Type: Steel Metal
  4. Connector: JR
  5. Command Signal: PWM
  6. Size (L x W x H) mm: 55 x 20 x 43
₹2076

(Including GST)

1
  • Category: Servo Motors
  • Tags: High-Torque Servo Motors
  • Stock:10 Items In Stock

We are importing and selling a diverse range of servo motors from various manufacturers for a long time and with tolerable feedback on it, we have come to know the issues faced by our customers regarding quality and efficiency. Owing to the responses of them we compelled to find the servo motor having good quality not only from outside but also from inner gear construction. So here we are launching our Own Pro-Range Premium Quality servo motor series with Metal gears construction where we can assure you that you will receive the best quality of motor what you are paying for with a 1-month of robu warranty.

We got constructed and tested this Pro-Range Premium Servo with Steel gear material inside gears and a tight sturdy plastic case which makes them water and dust resistant which is a very must feature required in Boats, and RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

The Pro-Range OT5325M 7.4V 25kg.cm 180° Steel Metal Gear Digital Servo Motor with any servo code, library, and hardware. It rotates approximately 120-degree, 60 degrees in each direction. This motor package comes with a selection of hardware and arms.

Wire Description:

  • RED – Positive
  • Brown – Negative
  • Orange – Signal

Features:

  • Copper Gears Construction
  • The connection cable is thicker
  • Equips high-quality motor
  • High resolution
  • Fast control response
  • Constant torque throughout the servo travel range
  •  Excellent holding power

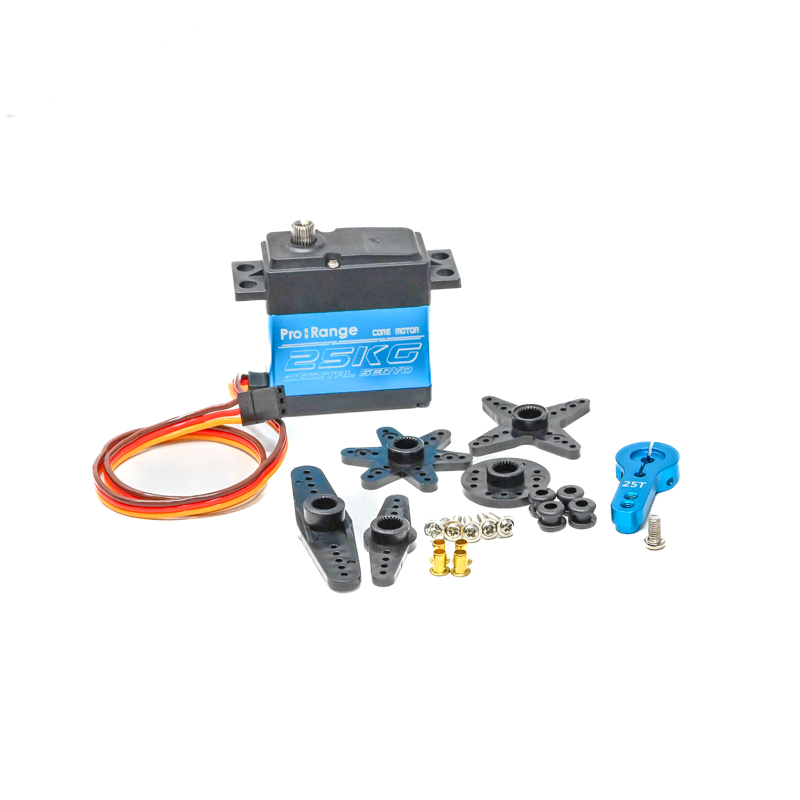

Package Includes:

  • 1 x Pro-Range OT5325M 7.4V 25kg.cm 180° Metal Gear Digital Servo Motor
  • 1 x Set of Horns
    • Two Arm Small (D: 38mm)
    • Two Arm Big (D: 55mm)
    • Four Arm (D:36.50mm)
    • Six Arm (D: 31.5mm)
    • Round Horn (D: 20.8)
  • 1 x 25T Aluminum Servo Horn Arm
  • 1 x Set of Screws
  • 1 x Other fitting Accessories set
