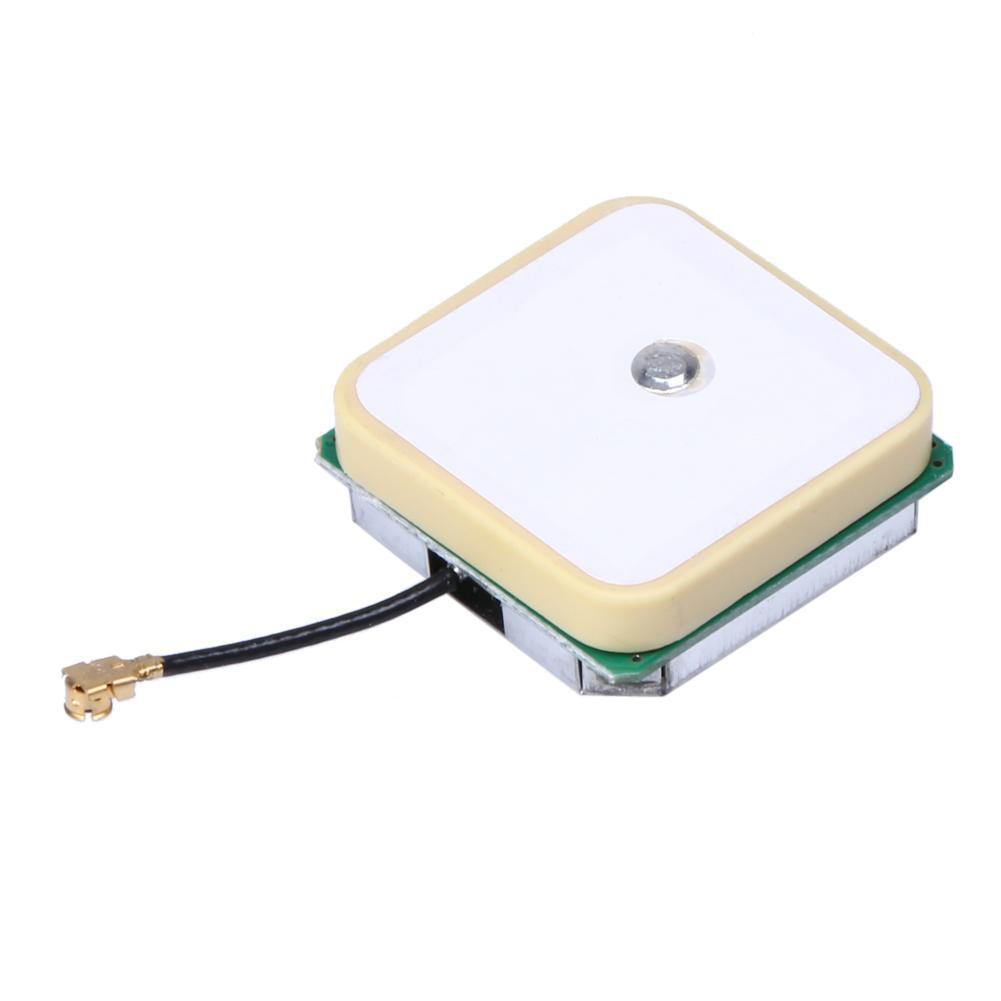

This is a NEO-M8N GPS Module with Ceramic Active Antenna.

The APM 2.5 NEO M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Features :

1. The ceramic antenna provides a very strong signal
2. With LED indicator lamp
3. The default baud rate: 9600.
4. Flash memory: 64KB
5. With data backup battery.
6. LED signal indicator.
7. Compatible with various flight controller module.
8. EEPROM save the configuration parameter data when power-down.

9. Assistance AssistNow GNSS Online

10. AssistNow GNSS Offline (up to 35 days)

11. AssistNow Autonomous (up to 6 days)

12. OMA SUPL & 3GPP compliant

13. Oscillator TCXO

14. Built-in RTC crystal

15. Anti-jamming Active CW detection and removal.

16. Extra onboard SAW bandpass filter

17. Memory Flash

18. Supported antennas Active and passive

19. Odometer Travelled distance

20. Data-logger For position, velocity, and time

Package Includes :

1. 1 x APM 2.5 NEO M8N GPS Module.
2. 1 x Ceramic Active Antenna.
