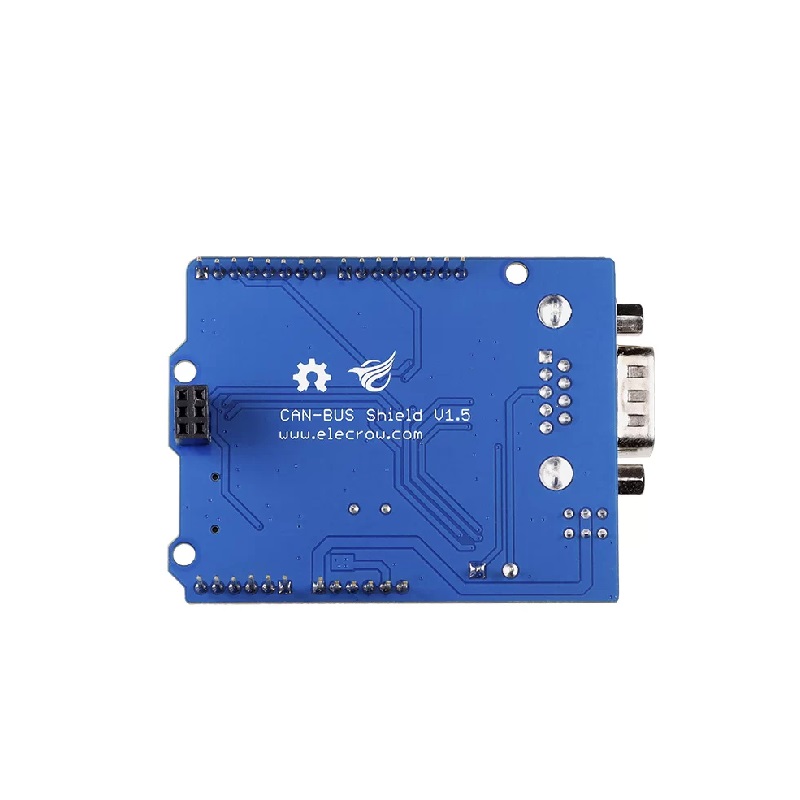

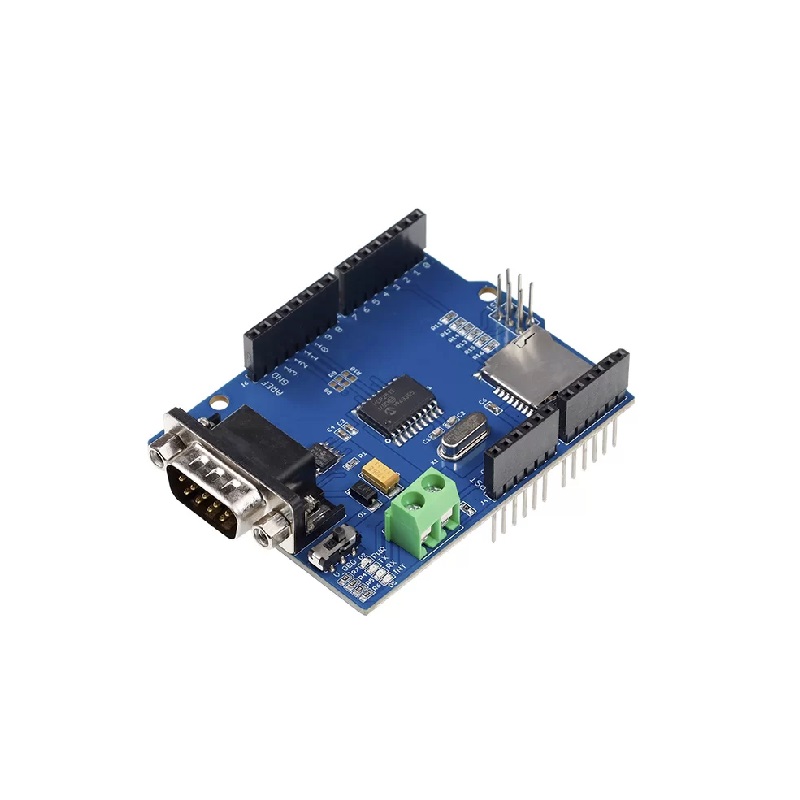

ELECROW ELE Can-Bus Shield-V1.5 is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is widely used as the automotive diagnostic bus, and also commonly used on modern machine tools. This CAN-Bus shield gives the Arduino CAN-Bus capability, It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver, the CAN connection is via a standard 9-way sub-D for use with OBD-II cable, ideal for automotive CAN application. The shield also has a Micro SD card holder, which helps you store the diagnostic information in the SD card directly, making this shield ideal for data logging applications.

Features:

• Arduino Mega and Leonardo compatible
• Implements CAN V2.0B at up to 1 Mb/s
• SPI Interface up to 10 MHz
• Standard (11 bit) and extended (29 bit) data and remote frames
• Two receive buffers with prioritized message storage
• Industrial standard 9 pin sub-D connector
• Two LED indicators
• SD card holder for information storage

Package Includes:

• 1 x ELECROW ELE Can-Bus Shield-V1.5
