DIY Neuroscience Kit – Pro is an advanced DIY Neuroscience Kit with Muscle BioAmp Shield – an EMG Shield for Arduino UNO

The shield offers multiple plug-and-play options, and additional data acquisition while the BioAmp EXG Pill enhances versatility by enabling the measurement of various biopotential signals, including EEG (brain), EOG (eyes), EMG (muscles), and ECG (heart). Embark on a journey of discovery, as you build exciting projects, develop HCI/BCI applications, and gain valuable insights.

DIY Neuroscience Kit Pro includes 2 biopotential sensors:

1. BioAmp EXG Pill (Assembled)

2. Muscle BioAmp Shield v0.3 (Assembled)

You can use these sensors either separately or connect them together to create a 2-channel EXG acquisition system wherein 1 channel can be used to record EMG signals and the 2nd channel allows you to record all the biopotential signals from your body (EMG, ECG, EOG, EEG).

Features and Specifications of BioAmp EXG Pill:

• Operating Voltage: 5V
• Input Impedance: 10^12 Ω
• Compatible Hardware: Any ADC input
• Biopotentials: ECG EMG, EOG, or EEG (configurable bandpass) | By default configured for EEG and EOG
• No. of channels: 1
• Electrodes: 2 or 3 (configurable) | By default configured for 3 electrodes
• Dimensions: 25.4 x 10.0 mm
• Open Source: Hardware + Software

Features and Specifications of Muscle BioAmp Shield v0.3:

• Operating Voltage: 5V
• Input Impedance: 10^11 Ω
• Fixed Gain: x2420
• Bandpass Filter: 72 – 720 Hz
• Compatible Hardware: Arduino UNO
• Biopotentials: EMG (Electromyography)
• No. of channels: 1
• Electrodes: 3 (Positive, negative and reference)
• Dimensions: 6.0 x 5.3 cm
• Open Source: Hardware + Software

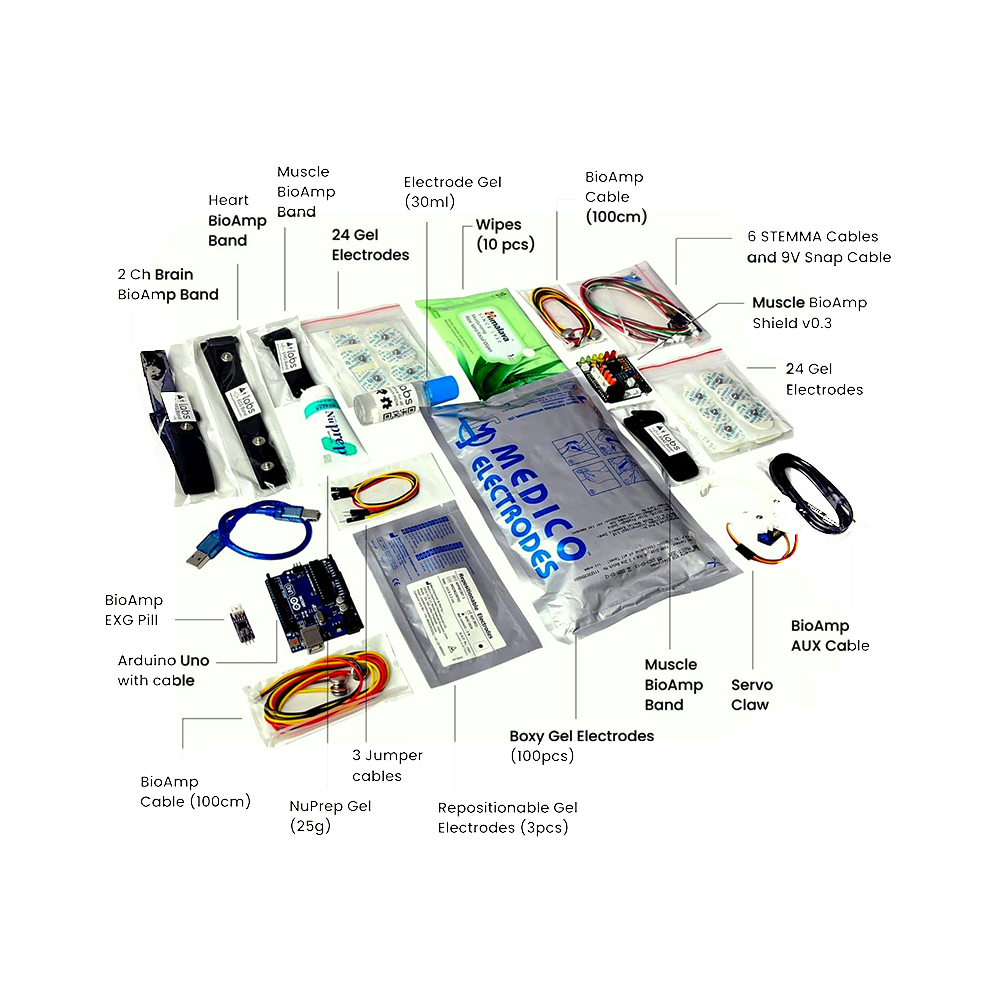

Package Includes:

• 1 x DIY Neuroscience Kit – Pro
