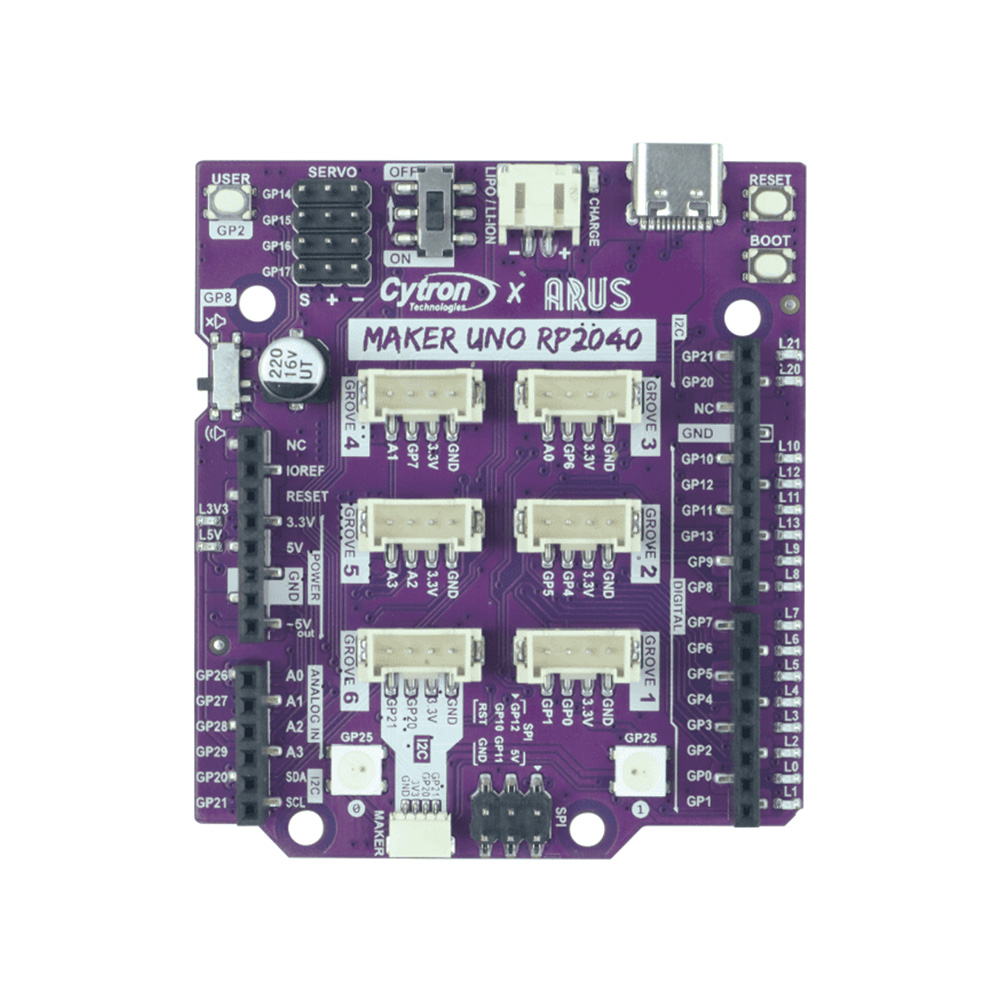

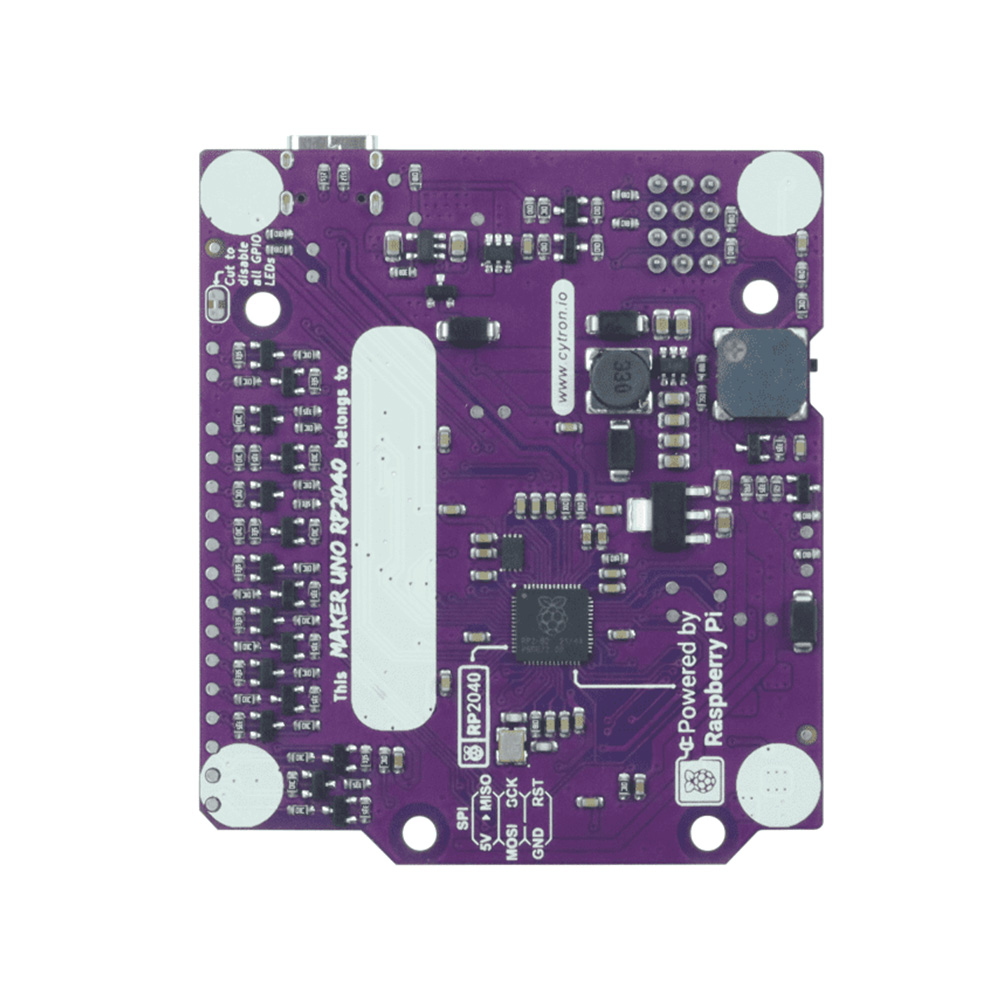

Introducing the Maker Uno RP2040, a revolutionary board combining Uno form factor with Raspberry Pi RP2040 chip. Boasting dual-core Arm Cortex-M0+, 264KB RAM, 2MB flash, and 16 PWM channels, it supports Arduino, CircuitPython, and MicroPython. With onboard LEDs, push buttons, and Grove ports for plug-and-play simplicity, it’s perfect for projects and learning. Seamlessly integrate up to 4 servos and power via USB-C or LiPo/Li-ion battery.

Features:

1. Raspberry Pi RP2040 chip with dual-core Arm Cortex-M0+.
2. Versatile support for Arduino, CircuitPython, and MicroPython.
3. Onboard LEDs, push buttons, and Grove ports for easy troubleshooting and connections.
4. Dedicated servo port for seamless integration of up to 4 servo motors.
5. Dual power options: USB-C or LiPo/Li-ion battery with built-in charging circuit.
6. Arduino/Maker Uno form factor for familiar usability and convenience.
7. Total +3V3 Output Current: Up to 500mA
8. Total +5V Output Current: Up to 600mA
9. Vservo (Only USB Connected): VUSB – 0.4V
10. Vservo (Only LiPo/Li-Ion Connected): *VBAT
11. Vservo (USB and LiPo/Li-Ion Connected): VUSB – 0.4V
12. USB VID & PID (CircuitPython & Arduino Core):
    VID: 0x2E8A, PID: 0x1071

Package Includes:

1. 1x Maker Uno RP2040
2. 1x Silicone Rubber Feet (Pack of 4)
3. 4x Grove to Female Header Cable
