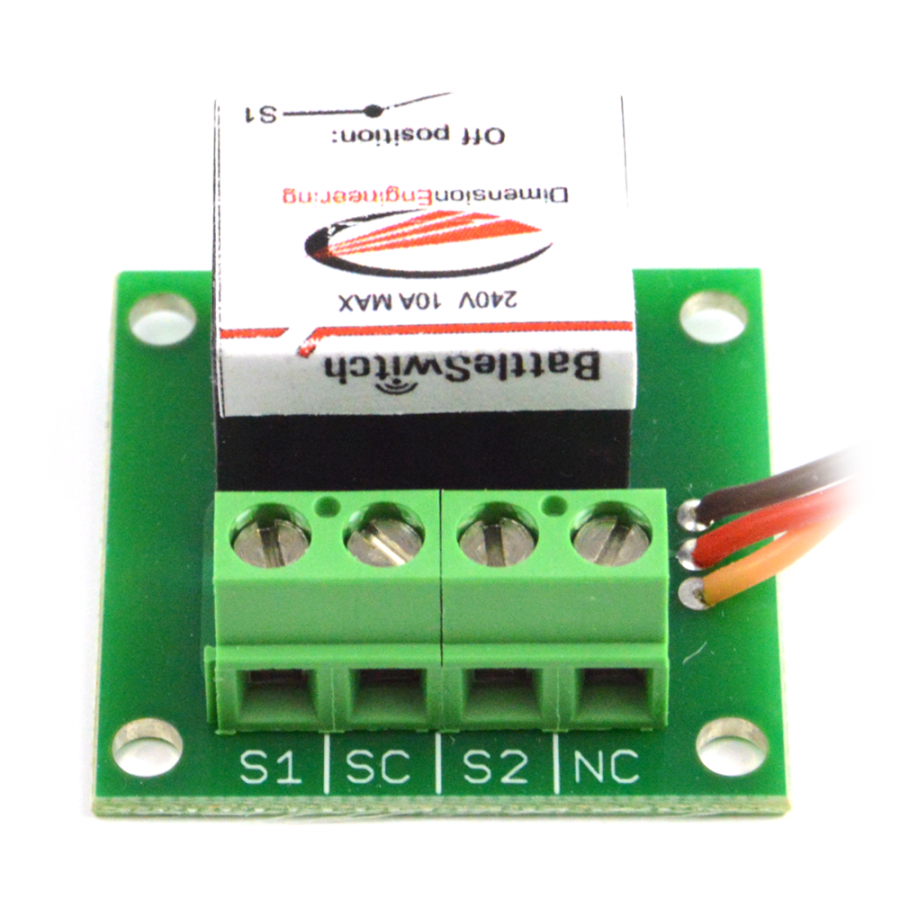

BattleSwitch radio controlled 10A relay is the larger, 10A version. BattleSwitch is a relay switch that you toggle via hobby radio control gear. You can use BattleSwitch radio controlled 10A relay (Dimension Engineering) to quickly and easily control glow plugs, BattleBot weaponry and more.

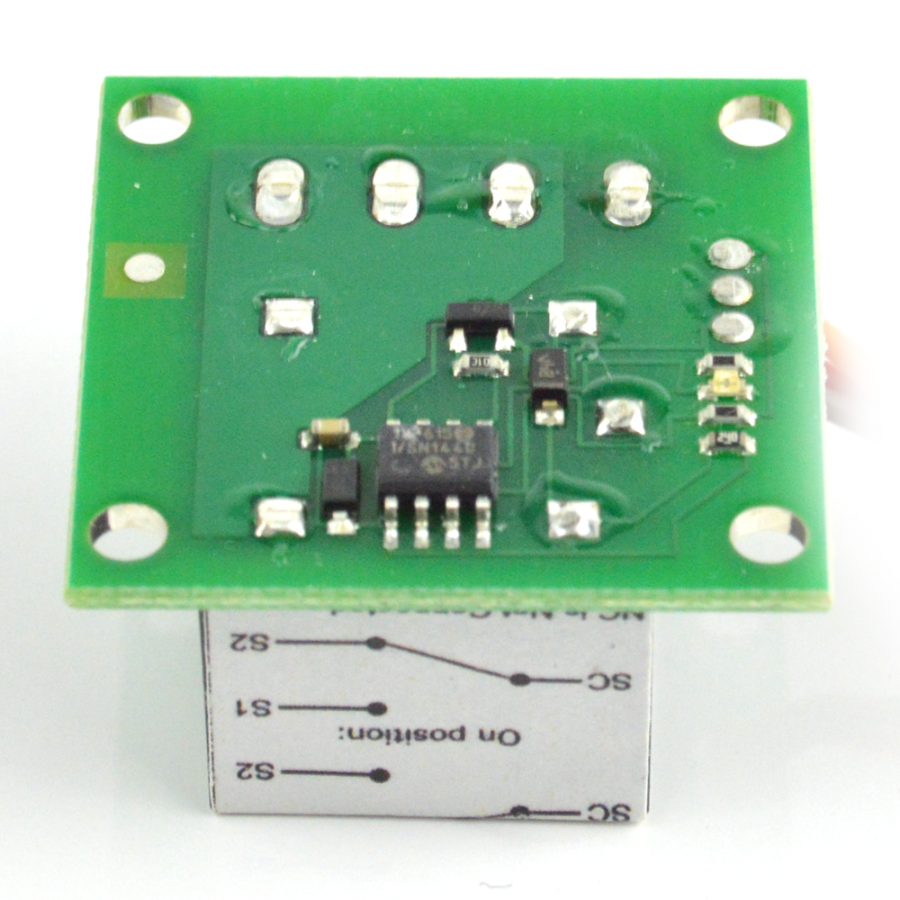

BattleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay  is a single pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using. BattleSwitch does not supply power at the screw terminals.

Applications:

• Powerful auxiliary weapons control in RC combat.
• Glow plugs control in RC nitro vehicles.
• High powered lighting systems control large RC aircraft, boats, cars.
• Domestic appliances and home automation control.
• Non-critical automotive electronics control such as glow wire.
• Nearly any application control can be toggled with a switch.

Features :

• 30mA typical draw from the receiver
• 12-inch servo pigtail
• Purposefully designed for RC Applications
• Can withstand the maximum current of 10A.
• Max Switching Voltage: 10A @ 28VDC, 12A @ 120VAC, 10A @ 240VAC.

Package Includes :

• 1 x BattleSwitch radio-controlled 10A relay Module
• 1 x A small use Manual
