Learn the basics of electronics by assembling manually your Arduino UNO, become familiar with soldering by mounting every single component, and then unleash your creativity with the only kit that becomes a synth!.The Arduino Make Your UNO kit is really the best way to learn how to solder. And when you are done, the packaging allows you to build a synth and make your music.

A kit with all the components to build your very own Arduino UNO and audio synthesizer shield.
The Make Your UNO Kit comes with a complete set of instructions in a dedicated content platform. This includes video material, a 3D interactive viewer for following detailed instructions, and how to program your board once it is finished.

Features:

• The kit comes with a comprehensive instruction manual
• Easy to Assemble
• All Necessary Components Included
• Compatible with Standard Arduino Shields

Package Includes:

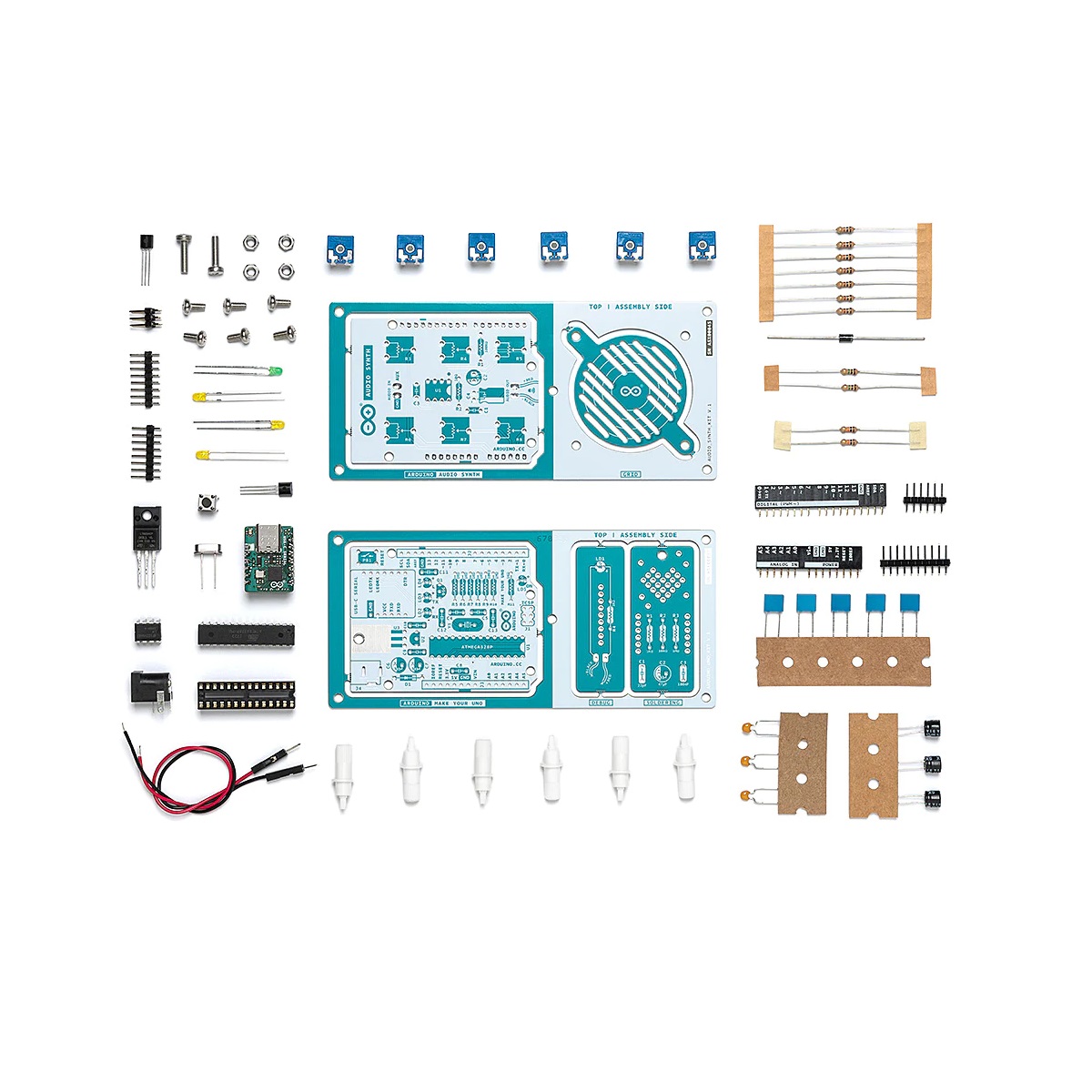

This kit contains:

Arduino make your Uno Kit AKX00037

• 1 x Make Your UNO PCB
• 1 x USB C Serial Adapter Board
• 7 x Resistors 1k Ohm
• 2 x Resistors 10k Ohm
• 2 x Resistors 1M Ohm
• 1 x Diode (1N4007)
• 1 x 16MHz Crystal
• 4 x Yellow LEDs
• 1 x Green LED
• 1 x Push-Button
• 1 x MOSFET
• 1 x LDO (3.3V)
• 1 x LDO (5V)
• 3 x Ceramic capacitors (22pF)
• 3 x Electrolytic capacitors (47uF)
• 7 x Polyester capacitors (100nF)
• 1 x Socket for ATMega 328p
• 2 x I/O Connectors
• 1 x Connector header 6 pins
• 1 x Barrel jack connector
• 1 x ATmega 328p Microcontroller

Arduino Audio Synth

• 1 x Audio Synth PCB
• 1 x Resistor 100k Ohm
• 1 x Resistor 10 Ohm
• 1 x Audio amplifier (LM386)
• 1 x Ceramic capacitors (47nF)
• 1 x Electrolytic capacitors (47uF)
• 1 x Electrolytic capacitors (220uF)
• 1 x Polyester capacitor (100nF)
• 4 x connectors pin header
• 6 x potentiometer 10k Ohm with plastic knobs

Spare parts

• 2 x Electrolytic capacitors (47uF)
• 2 x Polyester capacitor (100nF)
• 2 x Ceramic capacitors (22pF)
• 1 x Push-Button
• 1 x Yellow LEDs
• 1 x Green LED

Mechanical parts

• 5 x Spacers 12mm
• 11 x Spacers 6mm
• 5 x screw nuts
• 2 x screws 12mm
