2M2283 is a subdivided and high-performance stepper motor drive using constant angle and constant torque， which is designed for 130BYG、110BYG, and other 8A following two-phase, four-phase hybrid stepping motor. The driver uses a circuit that is Similar to the principle of servo control with the features of smooth running, low noise, low vibration, and low-temperature rise of the motor.It has 16 kinds of micro-step, and the micro-step can be set from full step to 51200 steps/rev. The working current can be set from  2.0A to 8.3A, and the output current has 16 stalls, the current resolution is about 0.5A; with automatic semi-flow, self-test, overvoltage, under-voltage, and over-current protection. This driver is AC power, Voltage does not exceed 240VAC not less than 120VAC

Features:

1.  High-performance, low price
2. micro-step
3. Automatic idle-current reduction
4. Optical isolating signals I/O
5. Max response frequency up to 200Kpps
6. Low-temperature rise, smooth motion
7. Online adaptive PID technology

Package Includes:

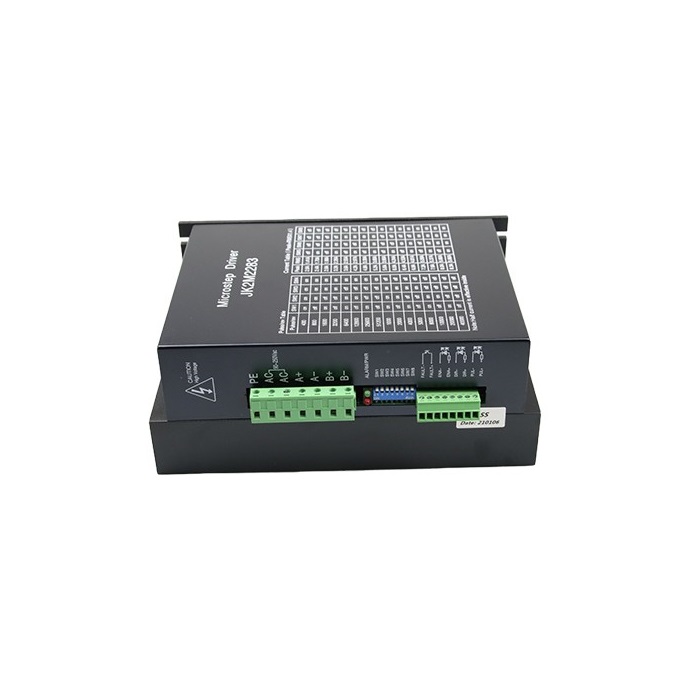

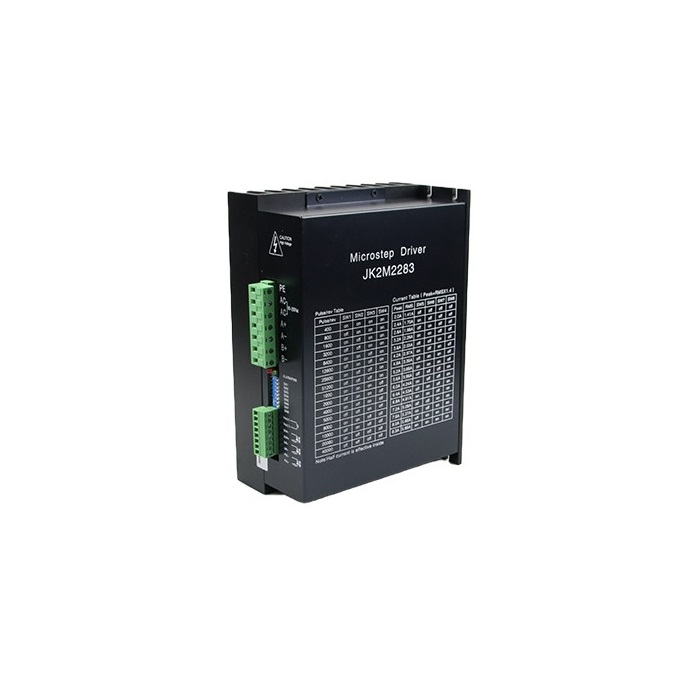

1. 1 x 2M2283 Stepper Motor Driver
